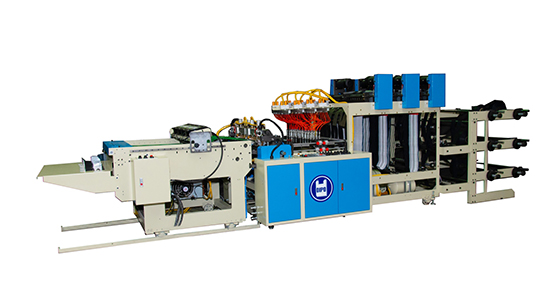

Planting Bag Making Machine (Two Servos / Flying Cutting System)
Applications

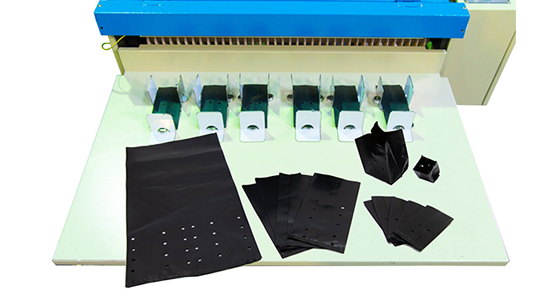

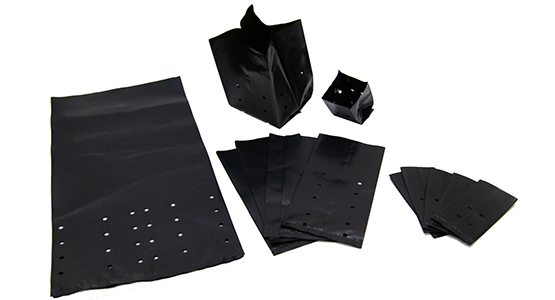

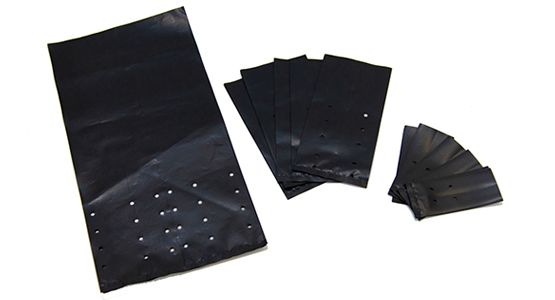

Flat Bags (With/Without Gusset), Extra Big Flat Bag, Mainly for Plant Bag
Raw Materials
HDPE, LDPE and more
Features
The Planting Bag Making Machine with 2 servos and flying cutting system works efficiently and precisely on the film. It is able to punch 48 holes on the bags, and the distance between holes to holes is adjustable. In that case, our end users are able to produce different sizes, different requests on planting bags. This equipment is with AC main motor, AC servo motor and DC feeding motor, which helps the producing stable and functional.
| Model | FF-326S-M4P48 |
|---|---|
| MAX. CUTTING WIDTH | 80 MM * 6 LINES |
| 155 MM * 4 LINES | |
| 305 MM * 2 LINES | |
| MAX. CUTTING LENGTH | 650 MM |
| THICKNESS | 0.05~0.18 MM (SINGLE LAYER) |
| R.P.M. | MAX. 50 CYCLE/MIN. |
