For t-shirt bag / banana handle bag, and bottom sealing bag making machine, we have fully automatic high speed: 250 cuts x 2 line /min and fully automatic normal speed: 120 cuts x 2 line, 4 line , 6 line /min with auto puncher.

Meanwhile, we have sealing and cutting machine for making perforating bag on roll, free-tension garbage bags, garbage bag with finished bag auto folded device, and calendar bag machine.

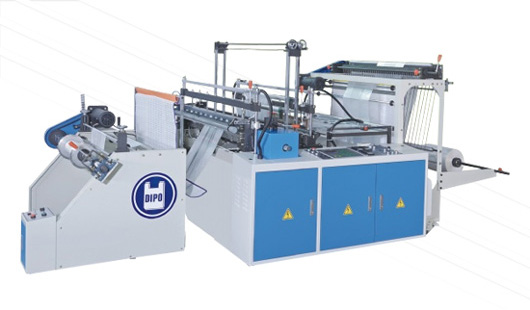

High Speed Perforated Bag Making Machine

High Speed Perforated Bag Making Machine

CATEGORIES:Bag Making Machine

Automatic machine which makes t-shirt bags, flat bags, garbage bags (bag on roll) with perforating capabilities. Equipped with a specialist servo motor that controls the bag length. The inverter makes it simple to control the speed of the machine and reduce electrical consumption of the device. Cutting is accurate using SKH3 blades and sealing options for open top bags or t-shirt bags. This machine also has an auto stopping alarm which stops the machine running when the film roll has been detected as empty. Available in both core and coreless models.

 Add Inquiry
  • Share：
Video 01
Video 02
Video 03
Applications

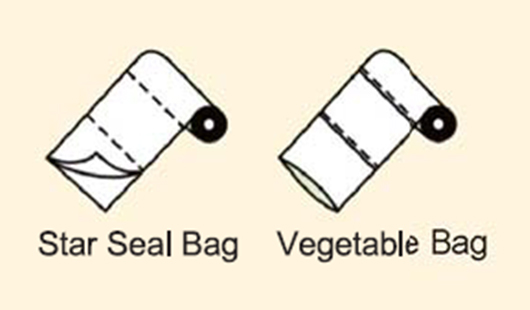

Garbage bags, star sealed bags, t-shirt bags, vegetable bags, flat bags and more

Raw Materials

HDPE, LDPE and more

Features

Automatic machine which makes t-shirt bags, flat bags, garbage bags (bag on roll) with perforating capabilities. Equipped with a specialist servo motor that controls the bag length. The inverter makes it simple to control the speed of the machine and reduce electrical consumption of the device. Cutting is accurate using SKH3 blades and sealing options for open top bags or t-shirt bags. This machine also has an auto stopping alarm which stops the machine running when the film roll has been detected as empty. Available in both core and coreless models.

Parts

Servo Motor: Yaskawa Japan
Photocell: SICK Germany

With core and without core


Model R-201S R-321S R-322S R-421S R-422S
Speed
(Cycles / Min) 		Max. 140 Max. 140 Max. 140 Max. 140 Max. 120
Width
(mm) 		400×1Line 700×1Line 320×2Lines 850×1Line 420×2Lines
Length
(mm) 		Max. 1000 Max. 1000 Max. 1000 Max. 1200 Max. 1200
Bag Thickness
(mm) 		0.008-0.035 0.008-0.035 0.008-0.035 0.008-0.035 0.008-0.035

Model RF-201S RF-321S RF-322S RF-421S RF-422S
Speed
(Cycles / Min) 		Max. 140 Max. 140 Max. 140 Max. 120 Max. 120
Width
(mm) 		455×1Line 760×1Line 355×2Line 1000×1Line 480×2Line
Length
(mm) 		Max. 1000 Max. 1000 Max. 1000 Max. 1200 Max. 1200
Bag Thickness
(mm) 		0.008-0.1 0.008-0.1 0.008-0.1 0.008-0.1 0.008-0.1
