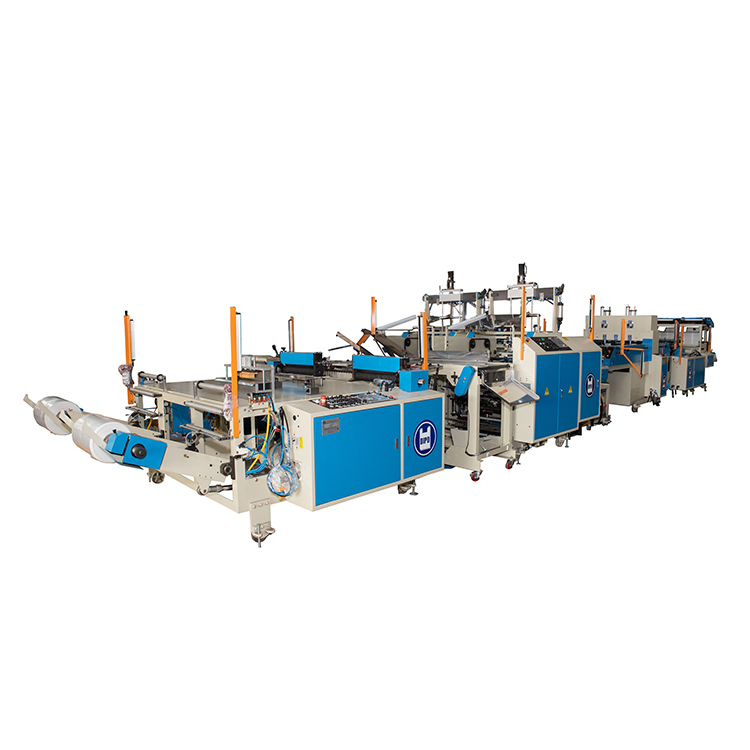

AUTOMATIC SERVO 2-LINE T-SHIRT BAG MAKING MACHINE+AUTOMATIC PACKING MACHINE

CATEGORIES:New Model

DIPO all in one T-shirt bag and automatic packing line is the perfect option for your shopping bag production needs. The whole process is automated, from film roll sealing, to bag cutting, punching and folding machine includes a packing machine so that your bags are shelf or store ready within seconds.

 Add Inquiry
  • Share:
Applications

T-shirt bags, shopping bags and more

Raw Materials

HDPE, LDPE and more

Features

DIPO all in one T-shirt bag and automatic packing line is the perfect option for your shopping bag production needs. The whole process is automated, from film roll sealing, to bag cutting, punching and folding machine includes a packing machine so that your bags are shelf or store ready within seconds.
- Improve your quality and yield rates with a full servo system connection
- Save resources with one worker being responsible for 2-3 bag making machines.
- Automatic folding device to improve work efficiency.
- Save the environment and save through energy use (no need for an extra packing line, bottom sealing section and sealing heat source.
- Save space with products being automatically sent and packaged ready for direct shipping.

Parts

HMI: CONCH Taiwan
Servo Motor: YASKAWA Japan
Servo Driver: YASKAWA Japan

Model KEEP-422S+2AP
Max. Cutting Width 180~450mm * 2 Lines
Max. Cutting Length 800 mm
Thickness 0.01 ~ 0.04 mm
Speed Max. 120 Cycle/Min.
