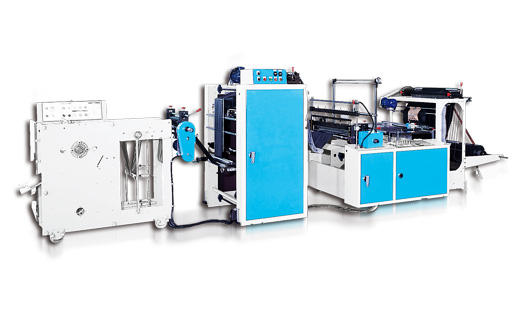

Automatic C-Fold Perforated Bag Making Machine (Coreless)
Automatic machine with winder that produces C-flat bags, (bag on roll) with perforating capabilities. Equipped with a specialist servo motor that controls the bag length. The inverter makes it simple to control the speed of the machine and reduce electrical consumption of the device. Cutting is accurate using SKH3 blades and sealing options for open top bags or t-shirt bags. This machine also has an auto stopping alarm which stops the machine running when the film roll has been detected as empty.
Add InquiryApplications

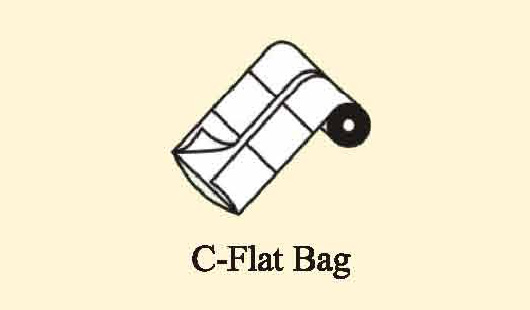

C-flat bags and more
Features
Automatic machine with winder that produces C-flat bags, (bag on roll) with perforating capabilities. Equipped with a specialist servo motor that controls the bag length. The inverter makes it simple to control the speed of the machine and reduce electrical consumption of the device. Cutting is accurate using SKH3 blades and sealing options for open top bags or t-shirt bags. This machine also has an auto stopping alarm which stops the machine running when the film roll has been detected as empty.
Parts
Servo Motor: Yaskawa Japan
Photocell: SICK Germany
Produces coreless C-fold bags with automatic winding.
| Model | RFC+W1 |
|---|---|
|
Speed (Cycles / Min) |
Max. 140 |
|
Width (mm) |
230×1 Lines |
|
Length (mm) |
Max. 1100 |
|
Bag Thickness (mm) |
0.01-0.1 |
|
Air Compressor (Not Included) |
5 HP |
|
Packing (cm) |
Machine：229×170 C Folding Rewinder：218×200 |
