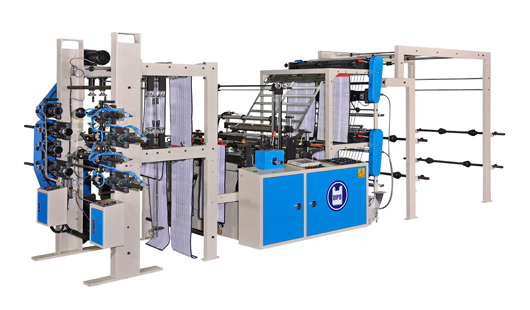

Automatic 4-Line Vegetable Bag Making Machine

CATEGORIES:Bag Making Machine

Automatic machine with 4 lines that produces cored type vegetable bags. It is also able to produce t-shirt bags, flat bags, garbage bags (bag on roll) with perforating capabilities. Equipped with a specialist servo motor that controls the bag length. The inverter makes it simple to control the speed of the machine and reduce electrical consumption of the device. Cutting is accurate using SKH3 blades and sealing options for open top bags or t-shirt bags. This machine also has an auto stopping alarm which stops the machine running when the film roll has been detected as empty.

 Add Inquiry
  • Share:
Applications

Garbage bags, star sealed bags, t-shirt bags, vegetable bags, flat bags and more

Raw Materials

HDPE, LDPE and more

Features

Automatic machine with 4 lines that produces cored type vegetable bags. It is also able to produce t-shirt bags, flat bags, garbage bags (bag on roll) with perforating capabilities. Equipped with a specialist servo motor that controls the bag length. The inverter makes it simple to control the speed of the machine and reduce electrical consumption of the device. Cutting is accurate using SKH3 blades and sealing options for open top bags or t-shirt bags. This machine also has an auto stopping alarm which stops the machine running when the film roll has been detected as empty.

Parts

Servo Motor: Yaskawa Japan
Photocell: SICK Germany

Core type, with servo driver, 4 lines bag making machine. For different types of vegetable bag.


Model RD-324S
Speed
(Cycles / Min)
Max. 120
Width
(mm)
320×4 Lines
Length
(mm)
Max600
Bag Thickness
(mm)
0.01-0.035
Air Compressor
(Not Included)
3HP
Packing 370×229
