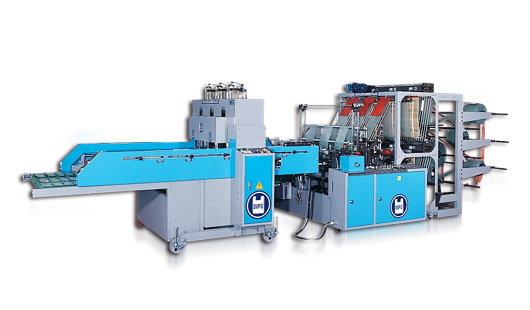

The DIPO double layer high speed flat bag and t-shirt bag making machine is suitable for many different types of bags. This versatility makes our bag making machine a fantastic option for factories making a varied amount of different bags. This machine uses a heat sealing and cold cutting method for optimum performance.

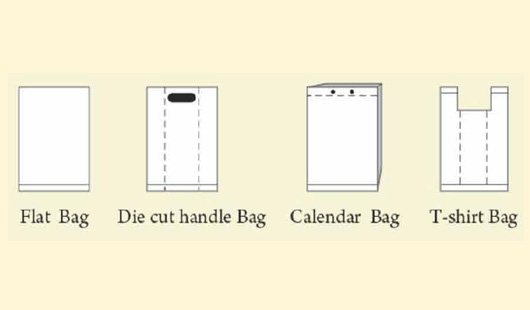

Add InquiryFlat bags, die cut handle bags, calendar bags, T-shirt bags and more
HDPE, LDPE and more
The DIPO double layer high speed flat bag and t-shirt bag making machine is suitable for many different types of bags. This versatility makes our bag making machine a fantastic option for factories making a varied amount of different bags. This machine uses a heat sealing and cold cutting method for optimum performance.
Servo Motor: Teco Taiwan
AC Motor: Fukuta Taiwan
Photocell: SICK Germany
PTFE Resin Adhesive Tapes NO.903UL: Japan
Servo motor driven
Model | KDP-324S | KDP-326S | KDP-424S | KDP-426S | KDP-428S |
---|---|---|---|---|---|
Speed (Cycles / Min) |
Max. 140 | Max. 140 | Max. 140 | Max. 140 | Max. 140 |
Width (mm) |
360×4 Lines | 220×6 Lines | 480×4 Lines | 300×6 Lines | 230×8 Lines |
Length (mm) |
Max. 650 | Max. 650 | Max. 650 | Max. 650 | Max. 650 |
Bag Thickness (mm) |
0.008-0.035 | 0.008-0.035 | 0.008-0.035 | 0.008-0.035 | 0.008-0.035 |
Air Compressor (Not Included) |
3HP | 3HP | 3HP | 3HP | 3HP |
Packing (cm) |
Machine:229×156 Punch:315×164 |
Machine:229×156 Punch:315×164 |
Machine:230×200 Punch:309×191 |
Machine:230×200 Punch:309×191 |
Machine:230×200 Punch:309×191 |
